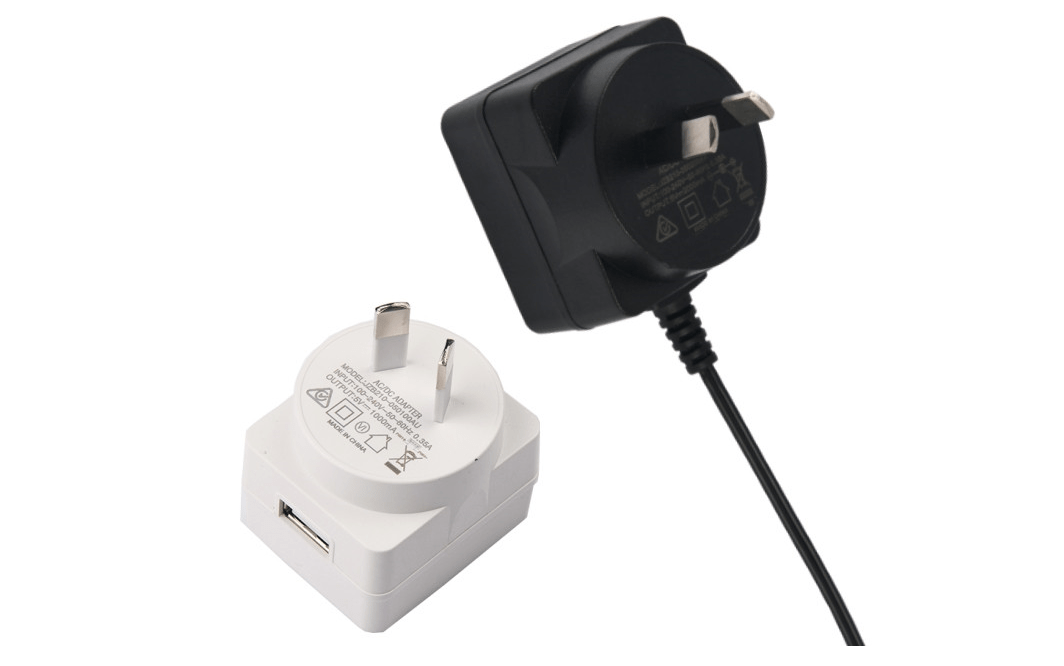

Model：JZB310-050200UX

input voltage：100V-240V 50/60HZ

output voltage：5v 1000ma 1500ma 2000ma

Output way：With DC wire (standard wire length 1.2m) can be customized length

size：L44.5x W35.5x H23.5mm;

DC head size

The straight head elbow

Can be customized：5.5*2.1*10 （5521）
5.5*2.5*10（5525）
3.5*1.35*10（3515）
Tpye - C header Micro head

High voltage test：3000V ACAging load:：Enter 220V full load aging for 2 hours

color：Black and white customizable

certificate：CCC CE FCC UL KC PSESAA UKCA KCC

INPUT CHARACTERISTICS:

2.1Input Voltage:

Rated Voltage: 100-240 Vac

Variation Range: 90-264 Vac

2.2Input Frequency:

Rated Frequency: 50-60 Hz.

Variation Frequency: 47-63 Hz

2.3Input Current:

0.35 Amps max At any input voltage and rated, DC output rated load.

2.4Inrush Current:

Impact current peak in the rated voltage input, cold start (25 ℃), not more than 30 A; And in any load and input conditions, don't cause permanent damage or dangerous.

2.5 Ac Leakage Current:

0.25mA Max.At240Vac input.

2.6 Stand-by power consumption ≤ 0.1 Watts.
