Model：JZB151-900100TX

JZB151-9001500CX

JZB151-9002000CX

Input Voltage:100V-240V 50/60HZ

output voltage：9v 1000ma 15.00ma 2000ma

Output way：DC：Output interface

DC:3.5*1.35*10mm

DC：5.5*2.1*10mm

DC:5.5*2.5*10mm

High voltage test：3000V AC

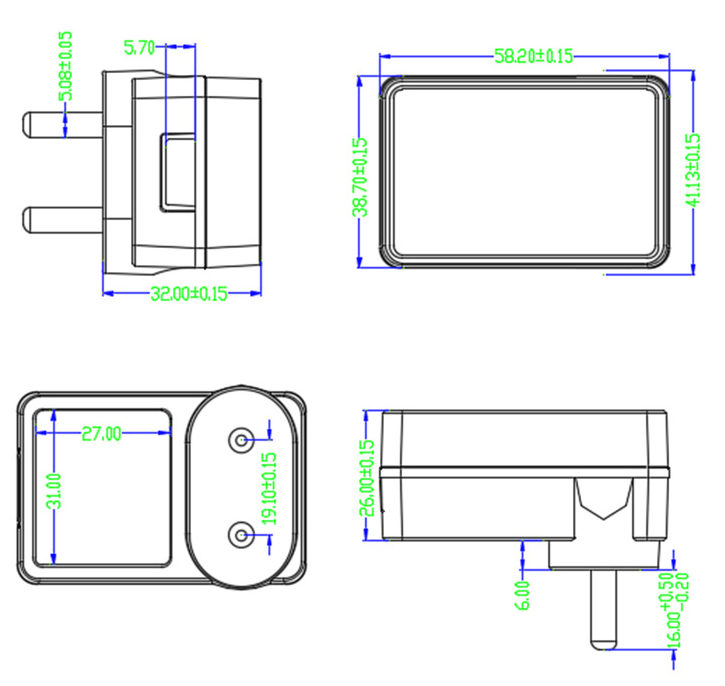

Appearance of size:L58.2x W38.7x H26mm

Aging load：Input 220V The full load ages for 2 hours

color: black white Can be customized

Support safety certificate：IEC61558 Standard for small household appliances

CCC CE GS FCC UL KC PSE SAA

INPUT CHARACTERISTICS:

2.1 Input Voltage:

Rated Voltage: 100-240 Vac

Variation Range: 90-264 Vac

2.2 Input Frequency:

Rated Frequency: 50-60 Hz.

Variation Frequency: 47-63 Hz

2.3 Input Current:

0.35 Amps max At any input voltage and rated, DC output rated load.

2.4 Inrush Current:

 Impact current peak in the rated voltage input, cold start (25 ℃), not more than 30 A; And in any load and input conditions, don't cause permanent damage or dangerous.

2.5 Ac Leakage Current:

0.25mA Max.At240Vac input.

2.6 Stand-by power consumption ≤ 0.1 Watts.
