Model：JZB024-120200WX

input voltage：100V-240V 50/60HZ

output voltage：12v 2000ma

High voltage test：3000V AC

Aging load：Enter 220V full load aging for 2 hours

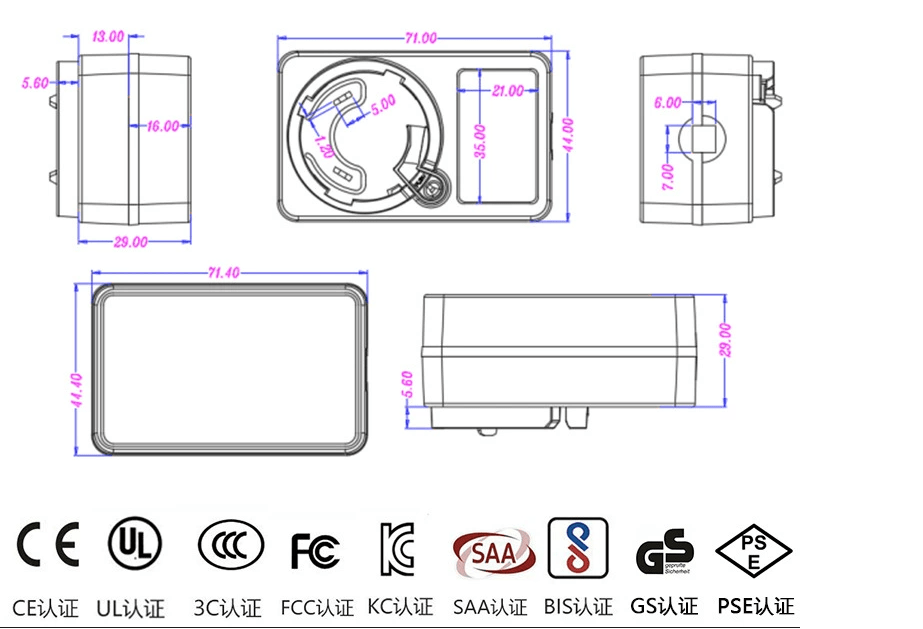

size：L71x W44x H29mm

color：Black and white customizable

certificate：CCC CE GS BIS UL ETL FCC SAA KC

INPUT CHARACTERISTICS:

2.1 Input Voltage:

Rated Voltage: 100-240 Vac

Variation Range: 90-264 Vac

2.2 Input Frequency:

Rated Frequency: 50-60 Hz.

Variation Frequency: 47-63 Hz

2.3 Input Current:

0.35 Amps max At any input voltage and rated, DC output rated load.

2.4 Inrush Current:

 Impact current peak in the rated voltage input, cold start (25 ℃), not more than 30 A; And in any load and input conditions, don't cause permanent damage or dangerous.

2.5 Ac Leakage Current:

0.25mA Max.At240Vac input.

2.6 Stand-by power consumption ≤ 0.1 Watts.
