product description

Model：J361-120300CX

output：12v 3000ma

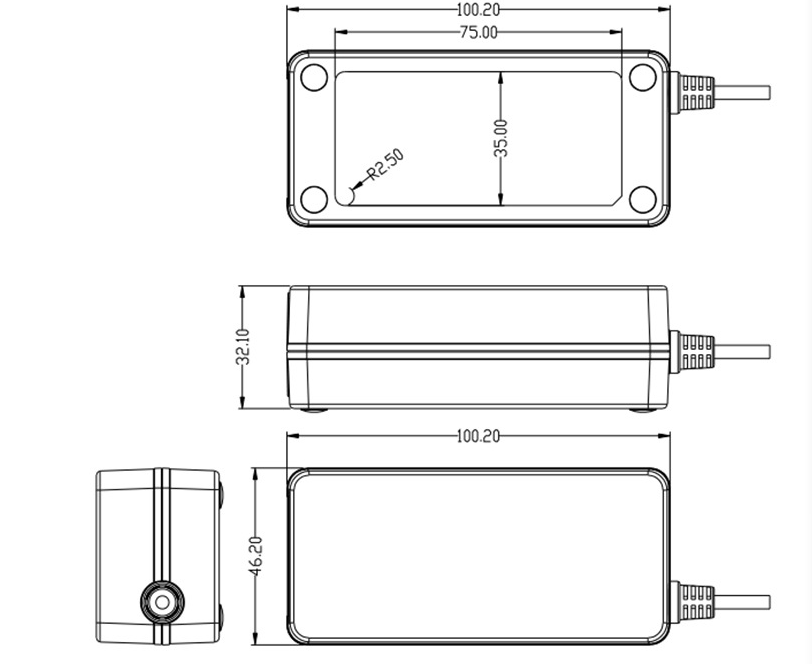

Size：L100.2x W32.1x H46.2mm

input voltage：100V-240V 50/60HZ

The output voltage：12v 3000ma

High voltage test：3000V AC

Aging load： input220V

The full load ages for 2 hours

Size：L100.2x W32.1x H46.2mm

color：Black and white customizable

Certificate ：：CCC CE GS UL ETL FCC SAA KC PSE

INPUT CHARACTERISTICS:

Input Voltage:

Rated Voltage: 100-240 Vac

Variation Range: 90-264 Vac

Input Frequency:

Rated Frequency: 50-60 Hz.

Variation Frequency: 47-63 Hz

Input Current:

0.35 Amps max At any input voltage and rated, DC output rated load.

Inrush Current:

 Impact current peak in the rated voltage input, cold start (25 ℃), not more than 30 A; And in any load and input conditions, don't cause permanent damage or dangerous.

Ac Leakage Current:

Maximum leakage current is 0.25mA at 240Vac input .

Stand-by power consumption ≤ 0.1 Watts.
